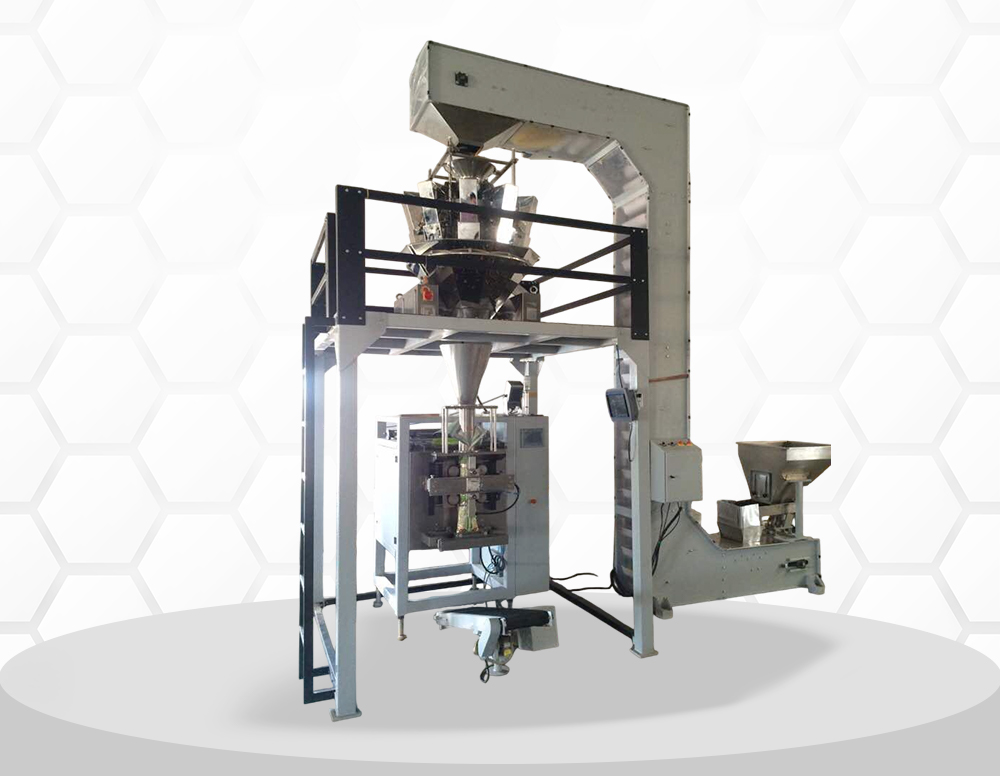

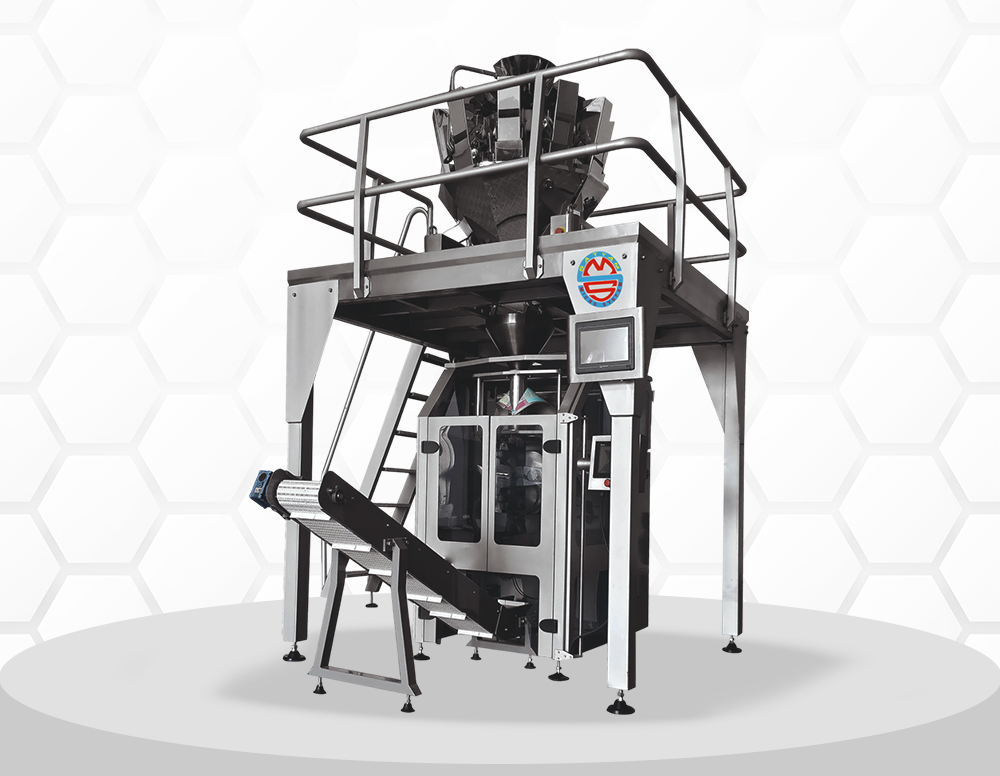

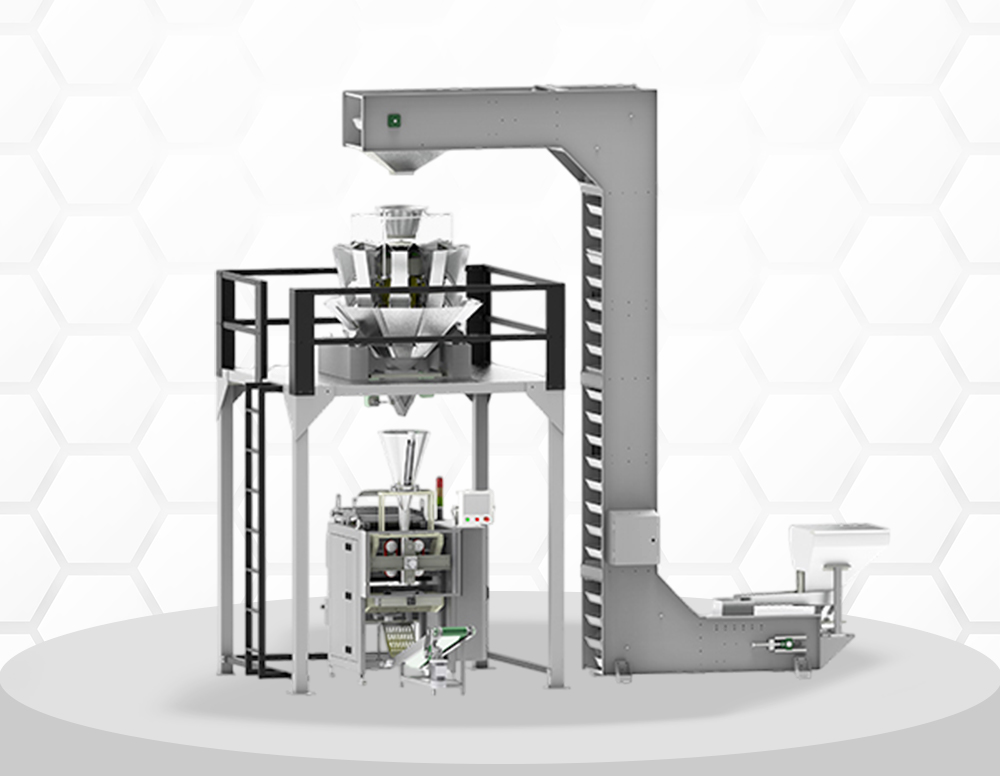

Automatic Vertical Form Fill and Seal (VFFS) Pouch Packing Machine with 10 multi Head Weigh Filler
The Automatic Vertical Form Fill and Seal (VFFS) Pouch Packing Machine with 10 multi Head Weigh Filler is an advanced packaging solution designed for precision and high-speed filling of granular, powdery, and other free-flowing products. This fully automated system is ideal for industries such as food, pharmaceuticals, chemicals, and more, where accuracy, efficiency, and speed are paramount. The 10 head multi head weigh filler with High speed bagger machine ensures precise weight measurement, making it an excellent choice for applications requiring high-fill accuracy and consistency.
| Particular | Details | |
|---|---|---|
| Speed *** | Up to 75 pouches per minute *** | |
| Volume to be packed*** | 5gms to 50 gms, 20 to 100 gms, 100 to 1000 gms *** | |
| Packaging film material | Any type of heat sealable laminated film in roll form | |
| Pouch size | Min: 70 x 80 mm to Max: 250 x380 ( in mm) | |
| Maximum film roll diameter | 525 mm*** | |
| Power supply | 415V, 50 -60 hz 3 Phase | |
| Connection load | Up to 11.5 Kw | |
| Air consumption: | 3.35 m3 / hr @ 6 bar | |
| Machine weight | Up to 1500 kgs | |
| Machine Dimensions | ||
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | ||
