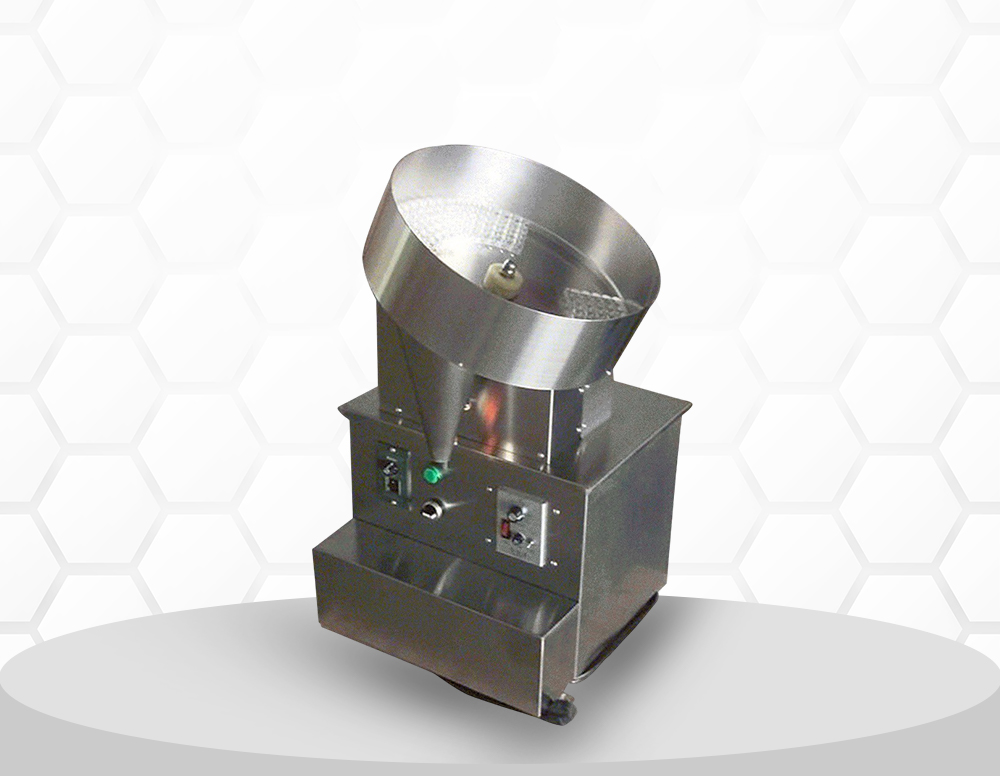

The Counting and Filling Machine is designed for high-accuracy counting and dispensing of solid discrete items such as tablets, capsules, pills, candies, screws, and similar products. Using optical sensor-based or vibratory plate technology, it ensures each package contains an exact count, not just weight. Ideal for pharmaceutical, nutraceutical, food, and industrial packaging, this system integrates seamlessly with VFFS machines or bottle filling lines.
| Parameter | Details | |
|---|---|---|
| Counting System | Optical sensor / Vibratory plate | |
| Count Range | 1 – 9999 pieces per pack | |
| Speed | Up to 50–100 fills per minute (depends on count) | |
| Tracks | Single / Double / Multi-track | |
| Material (Contact Parts) | SS304 / SS316 | |
| Control System | PLC with HMI | |
| Power supply | 220-230V, AC 50 hz 1 phase or 415V AC60 50 Hz 3 Phase (*customizable as per your requirement ) | |
| Connection load | Up to 4.5 Kw | |
| Air consumption: | 3.35 m3 / hr @ 6 bar | |
| Machine weight | Up to 600 kgs | |
| Machine Dimensions | ||
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | ||
