  • Automatic Sachet Packing Machine with 4 Head Linear Weigh Filler

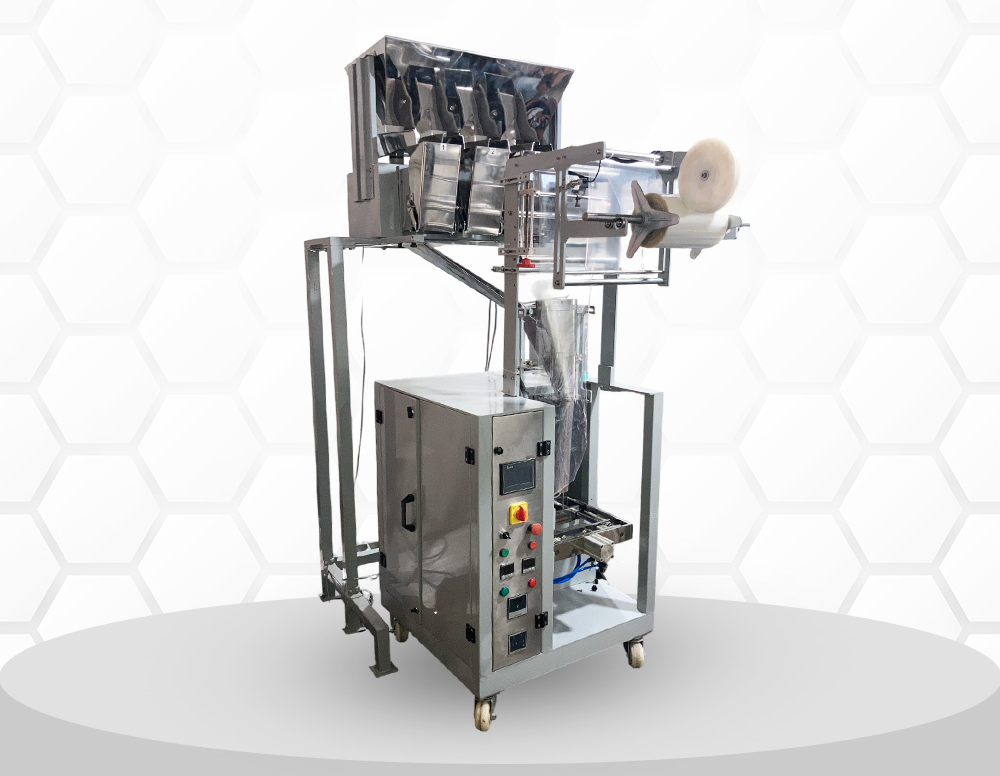

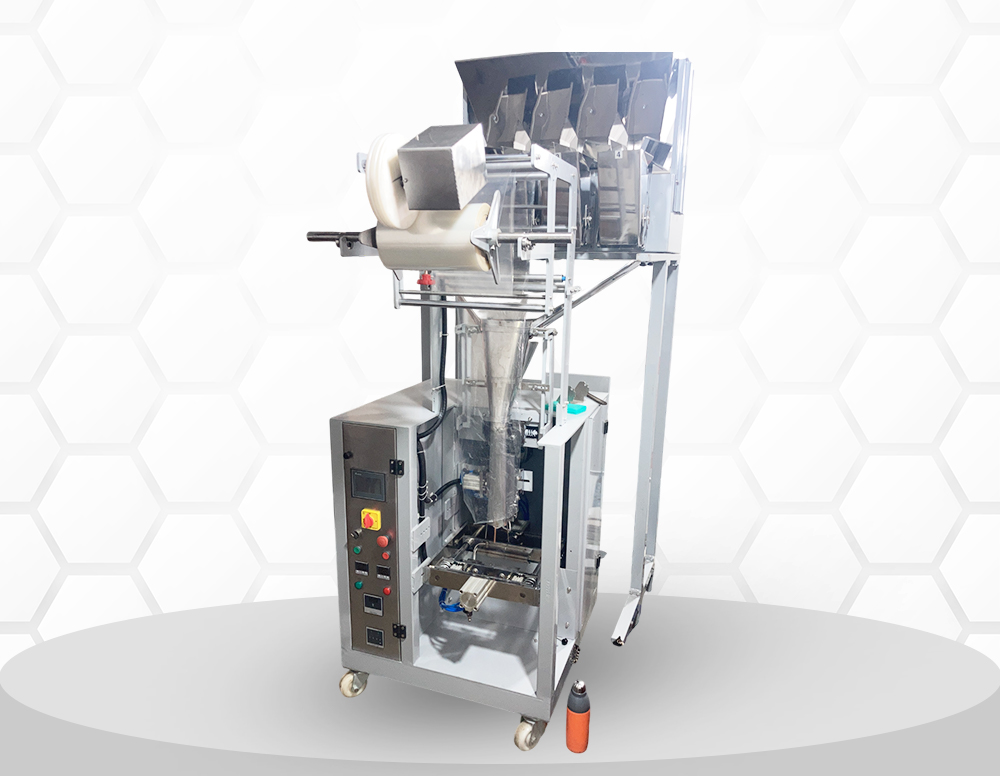

Automatic Sachet Packing Machine with 4 Head Linear Weigh Filler for Small Sachets

The 4 Head Linear Weigh Filler Sachet Packing Machine is a high-precision, semi-automatic/automatic filling solution designed for granular and free-flowing products. Engineered for consistent accuracy and speed, it ensures uniform weighing and packing of products like pulses, seeds, grains, dry fruits, namkeen, snacks, and more. Ideal for medium to high production volumes, this machine provides an efficient and economical packaging solution for the food and agro-industries.

msg Enquiry Now
4 Head Linear Weigh Filler for Small Sachets

4 Head Linear Weigh Filler for Small Sachets

4 Head Linear Weigh Filler for Small Sachets

4 Head Linear Weigh Filler for Small Sachets

Specifications:

Parameters Details
No. Of Filling Head 04 Nos.
No. Of Vibrator 04 Nos.
No of vibrating tracks 1 or 2 (depends on your product)
Weighing Range 10gm. To 2 Kg. ***
Bucket Capacity 3.5 LTR to 22 LTR***
Hopper Capacity 90 LTR. (hopper extension optional)
Speed Up-to 30 Wpm (WPM = Weighing Per Minute)***
Accuracy 1 - 2 gm. FS ***
Power Supply 230v A/C +/- 10% 50hz (Single Phase)
Operating System HMI (7.0 Inch Display In Color)
Control System MCU
Machine Weight 250 Kg. Approx.
Machine Dimension _____ x _____ x _____ [L x B x H]
*** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection

Key Features:

  1. Four independent weighing heads with vibrating trays
  2. PLC-based control system with intuitive touch screen
  3. Robust stainless steel structure for hygienic packaging
  4. User-friendly interface for weight settings and recipe storage
  5. Real-time weight monitoring with high accuracy
  6. Easily removable contact parts for cleaning and maintenance
  7. Adjustable hopper vibration for product flow control
  8. Works with pre-formed pouches or form-fill-seal systems
  9. Suitable for dusty and granular environments
  10. Compact design with minimal footprint

Applications / To Pack Products…

  1. Ideal for Packaging a Wide Range of Granular, Powdery, and Free-Flowing Products across Multiple Industries Like:
  2. Pharmaceutical, Food and Beverages
  3. Chemical and Fertilizers, Cosmetics and Personal Care, Fmcg, Pet Food Etc
  4. Few Types of Product This Machine Can Pack Are :
    Fertilizers, Seeds, Granules, Pulses, Dals, Whole Spices, Lentils, Grains, Namkeens, Chips, Wafers, Tea, Sugar, Salt, and Many More into Pouches Bags etc.

Sachet Packing Machines Related Products

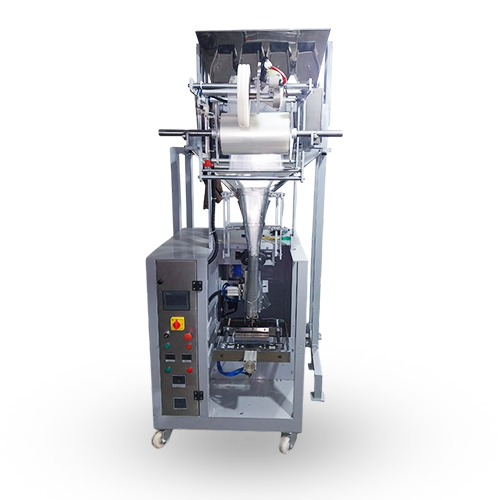

2 Head Linear Weigh Filler Sachet Packing Machine

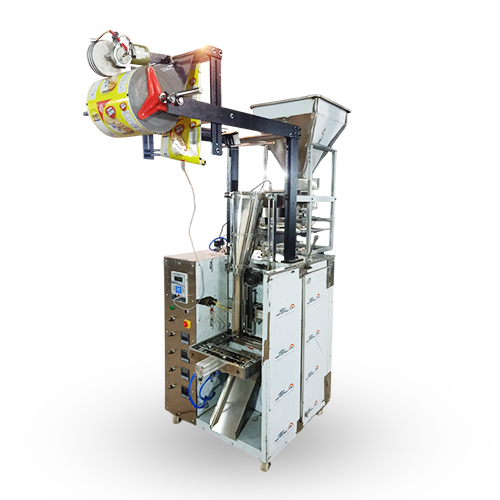

Volumetric Cup Filler Sachet Packing Machine

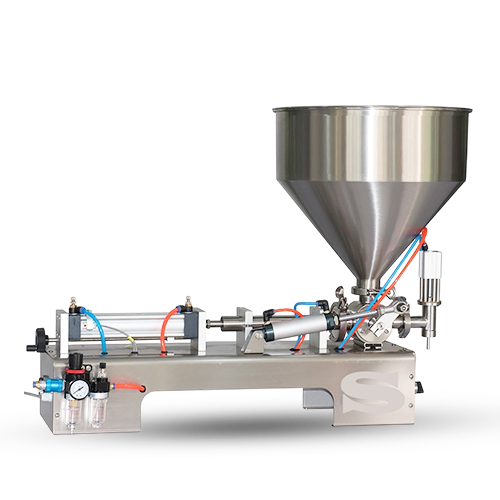

Volumetric Liquid Packing Machine with Piston Filler
