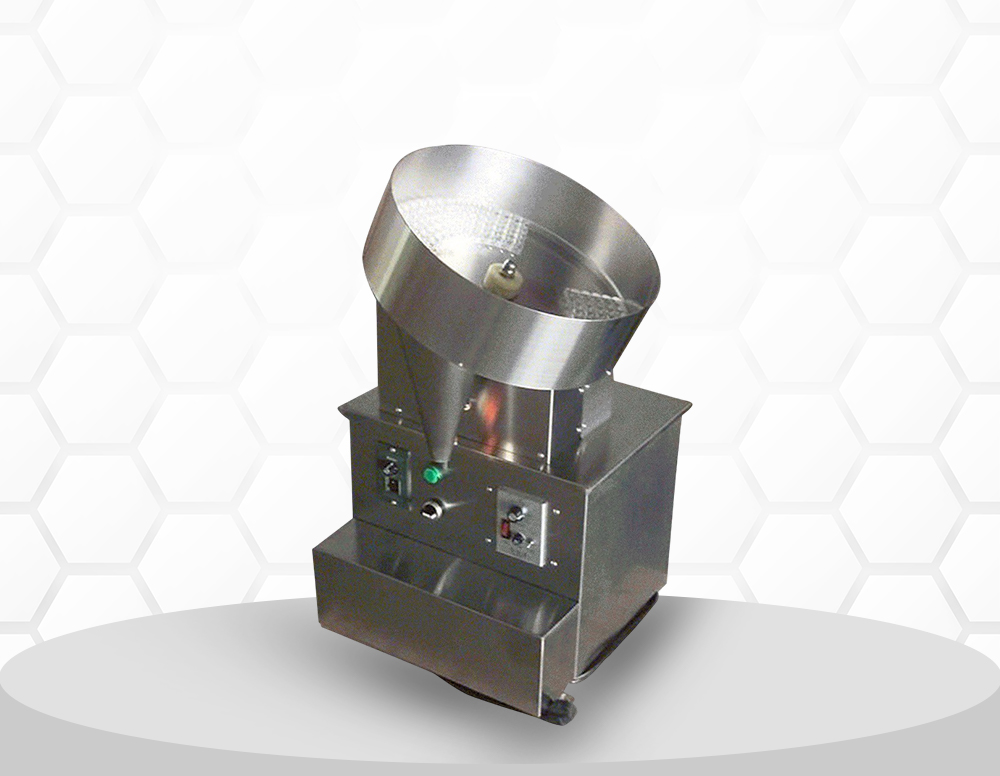

The Counting and Filling Machine is a highly accurate solution for packaging solid unit-based items such as tablets, capsules, candies, screws, and other small countable products. Instead of weight or volume, it uses precision counting sensors to ensure the exact number of items per sachet or pouch. Ideal for the pharmaceutical, nutraceutical, confectionery, and industrial sectors, this machine delivers both speed and reliability for small-format packaging.
| Parameters | Details | |
|---|---|---|
| Counting System | Optical sensor / Vibratory plate | |
| Count Range | 1 – 9999 pieces per pack | |
| Speed | Up to 50–100 fills per minute (depends on count) | |
| Tracks | Single / Double / Multi-track | |
| Material (Contact Parts) | SS304 / SS316 | |
| Control System | PLC with HMI | |
| Power supply | 220-230V, AC 50 hz 1 phase or 415V AC60 50 Hz 3 Phase (*customizable as per your requirement ) | |
| Connection load | Up to 4.5 Kw | |
| Air consumption: | 3.35 m3 / hr @ 6 bar | |
| Machine weight | Up to 600 kgs | |
| Machine Dimensions | ||
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | ||
