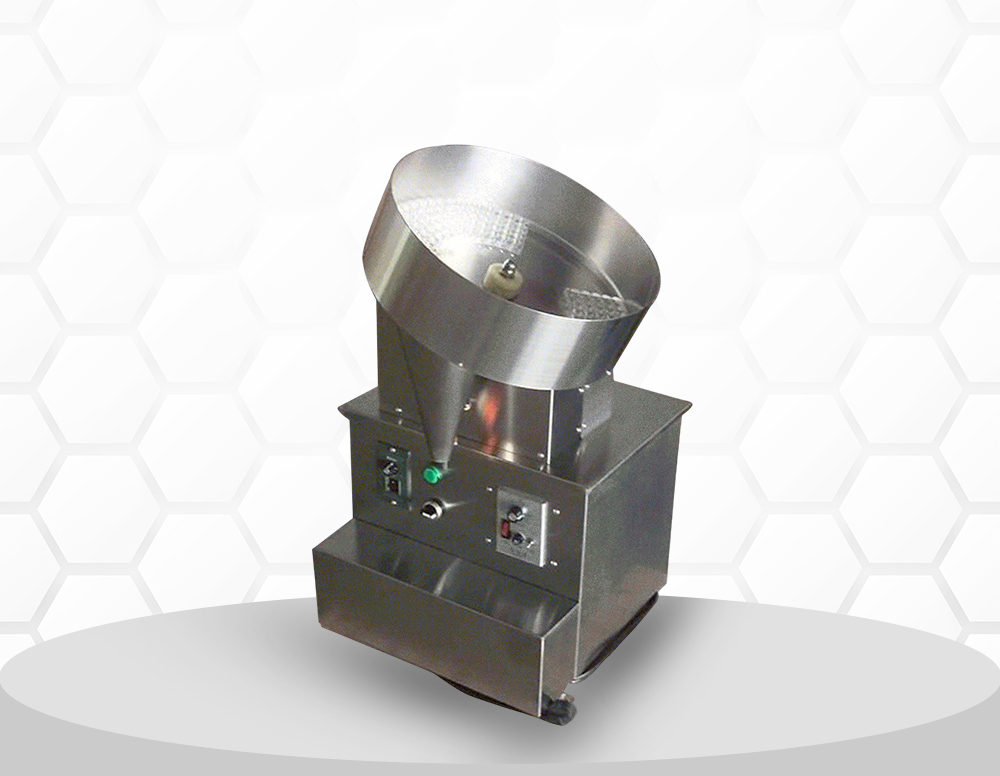

The Semi Automatic Counting and Filling Machine is a precision-engineered solution for counting and packing tablets, capsules, soft gels, candies, nuts, and other small solid items. Using advanced sensor-based technology or vibratory feeding systems, it delivers accurate counts with minimal error, making it a perfect fit for pharmaceuticals, nutraceuticals, and food industries that require consistency and hygiene.
| Parameter | Details | |
|---|---|---|
| Filling Mechanism | Vibratory or sensor-based counting | |
| Counting Capacity | 1-500 pieces (adjustable) | |
| Speed | Up to 20-40 counts/min (product dependent) | |
| Power Supply | 230V, 50Hz, Single Phase | |
| Power Consumption | ~1.0-1.5 kW | |
| Control System | PLC with touchscreen HMI | |
| Product Size Range | 3mm - 25mm | |
| Hopper Capacity | 10-20 liters | |
| Material Construction | SS304 (contact parts) | |
| Optional Features | Foot switch, dust collector, product bin | |
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | ||
