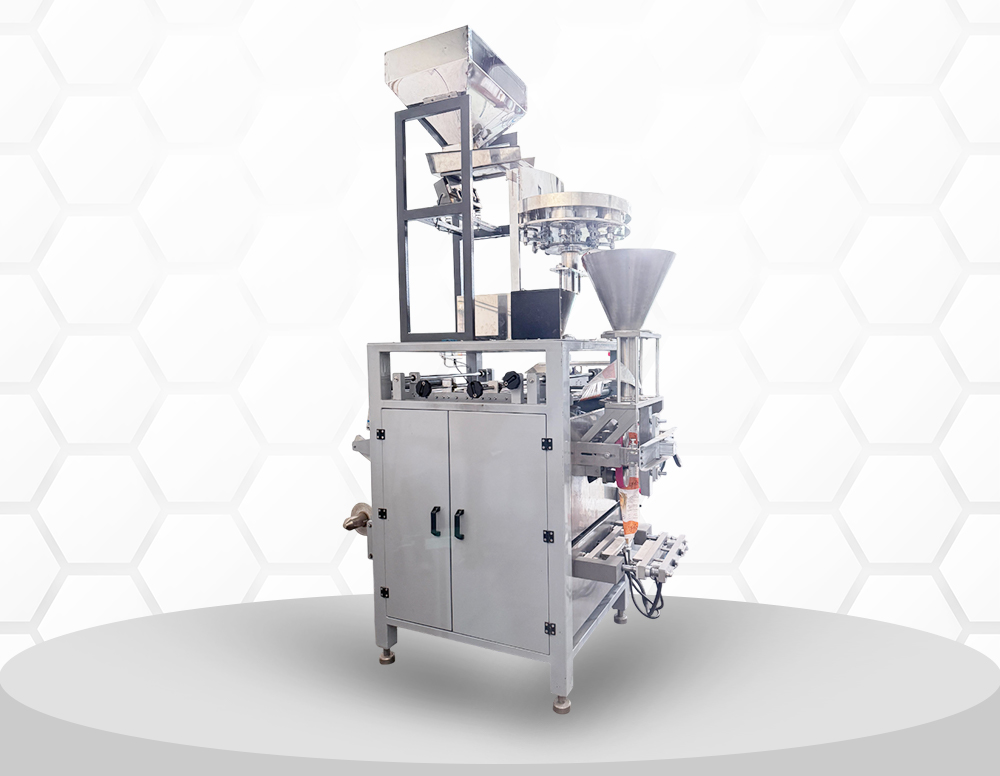

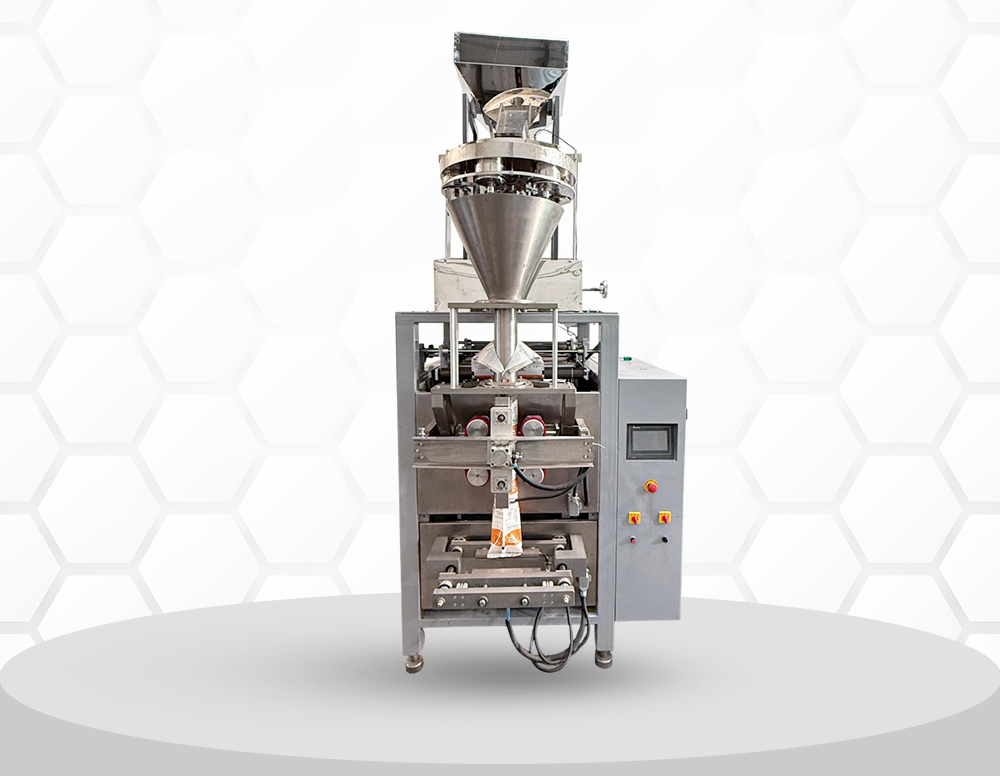

The Volumetric Cup Filler paired with a VFFS machine offers a simple yet highly efficient solution for packaging free-flowing powders and granules. Using interchangeable volume cups, it ensures fast and accurate dosing with minimal maintenance. Perfect for products like sugar, salt, grains, and detergent granules, this system is ideal for businesses seeking consistent output with low operational complexity.
| Particular | Details |
|---|---|
| Filling System | Telescopic volumetric cups |
| Fill Range | 10 gms to50 gms, 100 gms to 250 gms 500 gms to 1000 gms, |
| Packaging film material | Any type of heat sealable laminated film in roll form |
| Pouch size | Min: 70 x 80 mm to Max: 250 x380 ( in mm) |
| Maximum film roll diameter | 350 mm |
| Power supply | 415V, AC 220-230V, 50 hz 3 Phase (*customizable as per your requirement ) |
| Connection load | Up to 5.5 Kw |
| Air consumption: | 3.35 m3 / hr @ 6 bar |
| Machine weight | Up to 700 kgs |
| Machine Dimensions | |
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | |
