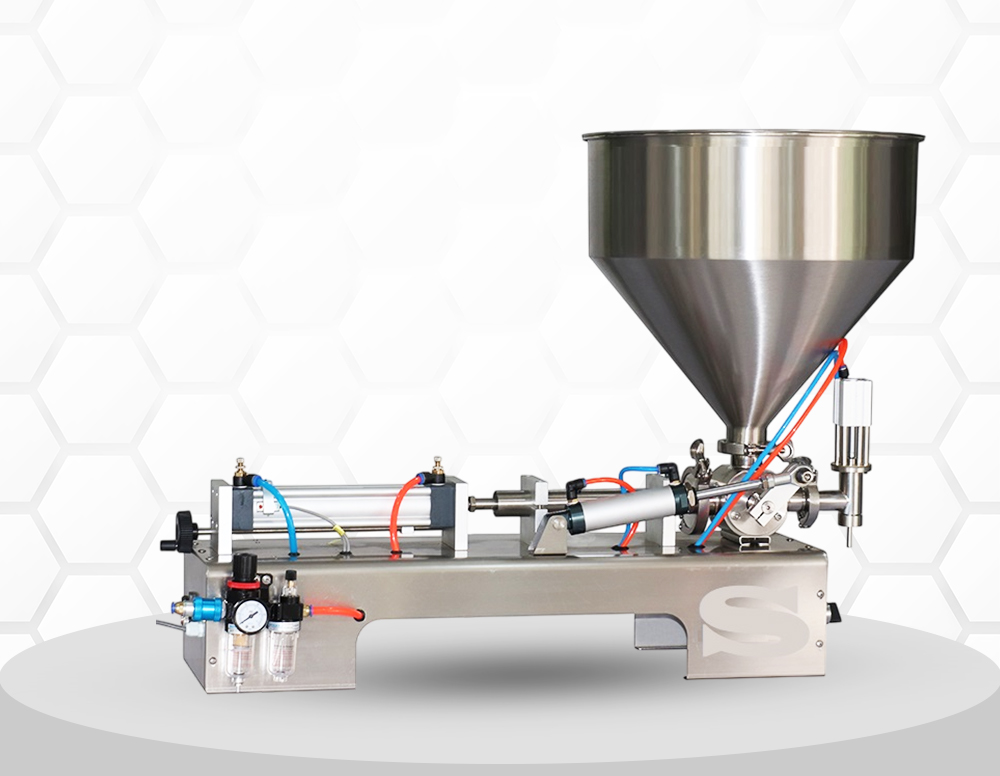

The Volumetric Liquid Packing Machine with Piston Filler is a precision-engineered solution for packaging liquid and semi-viscous products into sachets or pouches. Using piston-based volumetric dosing, it ensures consistent fill volume, clean dispensing, and minimal wastage. Whether you’re filling sauces, syrups, oils, or lotions, this machine is built for hygiene, durability, and efficiency—making it ideal for food, pharma, cosmetic, and chemical applications.
| Parameters | Details | |
|---|---|---|
| Filling System | Volumetric piston filler | |
| Filling Range | 1 ml to 250 ml (customizable for diff. fill volume diff. models)*** | |
| Packing Speed | Up to 20-35 packs per minute (depends on product and weight) | |
| Hopper Capacity | 50 LTR. (hopper extension optional) | |
| Accuracy | 1 - 2 %. FS *** | |
| Power Supply | 230v A/C +/- 10% 50hz (Single Phase) | |
| Operating System | HMI (7.0 Inch Display In Color) | |
| Control System | MCU | |
| Machine Weight | 150 Kg. Approx. | |
| Machine Dimension | _____ x _____ x _____ [L x B x H] | |
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | ||
