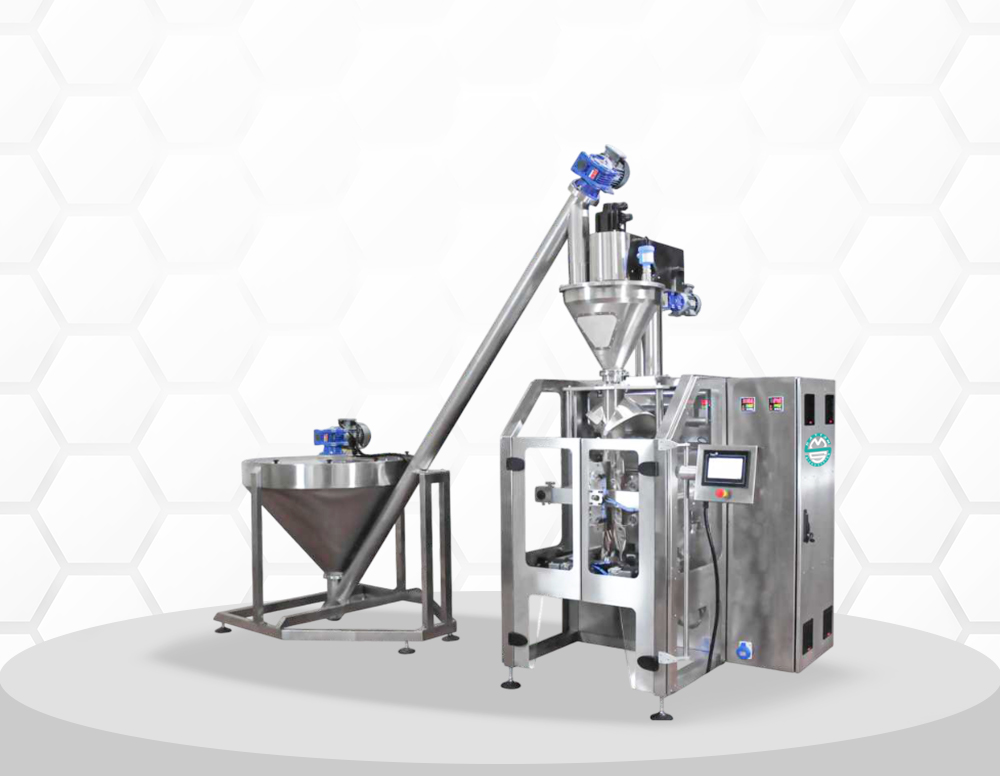

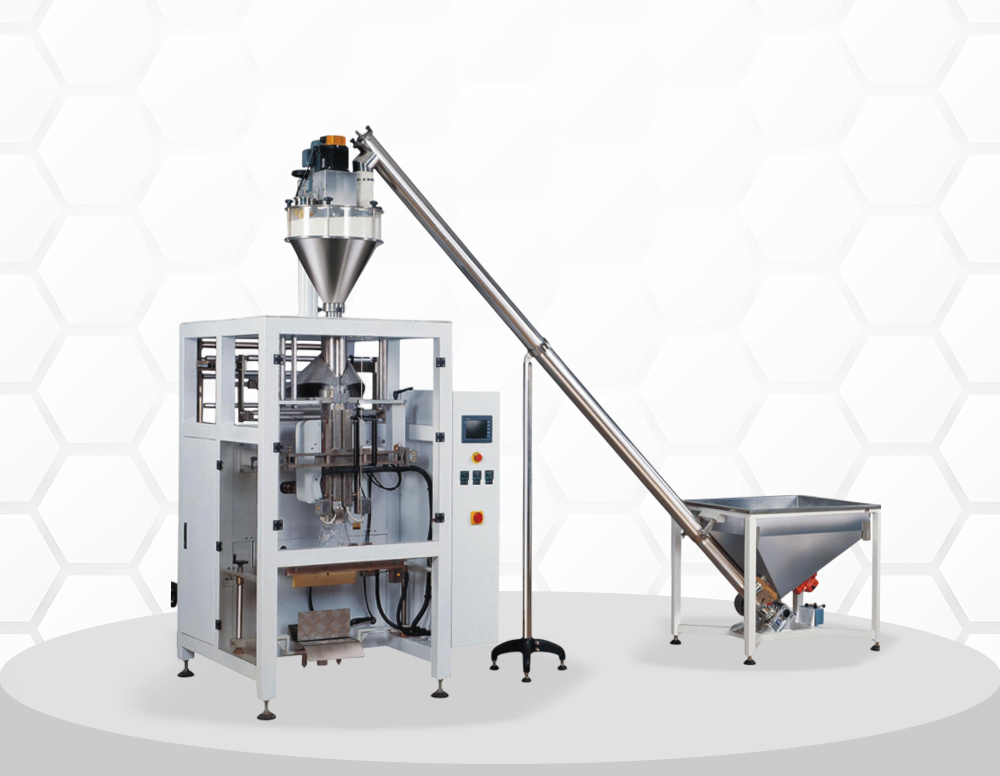

Vertical Form Fill and Seal (VFFS) Machine with Servo Auger Filler and Servo Bag Pulling System
The Vertical Form Fill and Seal (VFFS) Machine with Servo Auger Filler and Servo Bag Pulling System is a state-of-the-art packaging solution designed for high-speed and precise packaging of powdered products. Engineered for industries such as food, pharmaceuticals, chemicals, and cosmetics, this advanced VFFS machine combines cutting-edge servo technology for enhanced filling accuracy and operational efficiency. The servo auger filler and servo bag pulling system work in perfect harmony to ensure fast, reliable, and high-precision packaging, making it the ideal choice for businesses seeking to optimize their packaging process while reducing operational costs.
| Particular | Details | |
|---|---|---|
| Speed *** | Up to 100 pouches per minute *** | |
| Volume to be packed*** | 10 gms to250 gms, 250 gms to 1000 gms, 1 kg to 5 kgsm 5 kgs to 10 kgs | |
| Packaging film material | Any type of heat sealable laminated film in roll form | |
| Pouch size | Min: 70 x 80 mm to Max: 250 x380 ( in mm) | |
| Maximum film roll diameter | 750 mm*** | |
| Power supply | 415V, 50 -60 hz 3 Phase | |
| Connection load | Up to 11.5 Kw | |
| Air consumption: | 3.35 m3 / hr @ 6 bar | |
| Machine weight | Up to 1500 kgs | |
| Machine Dimensions | ||
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | ||
