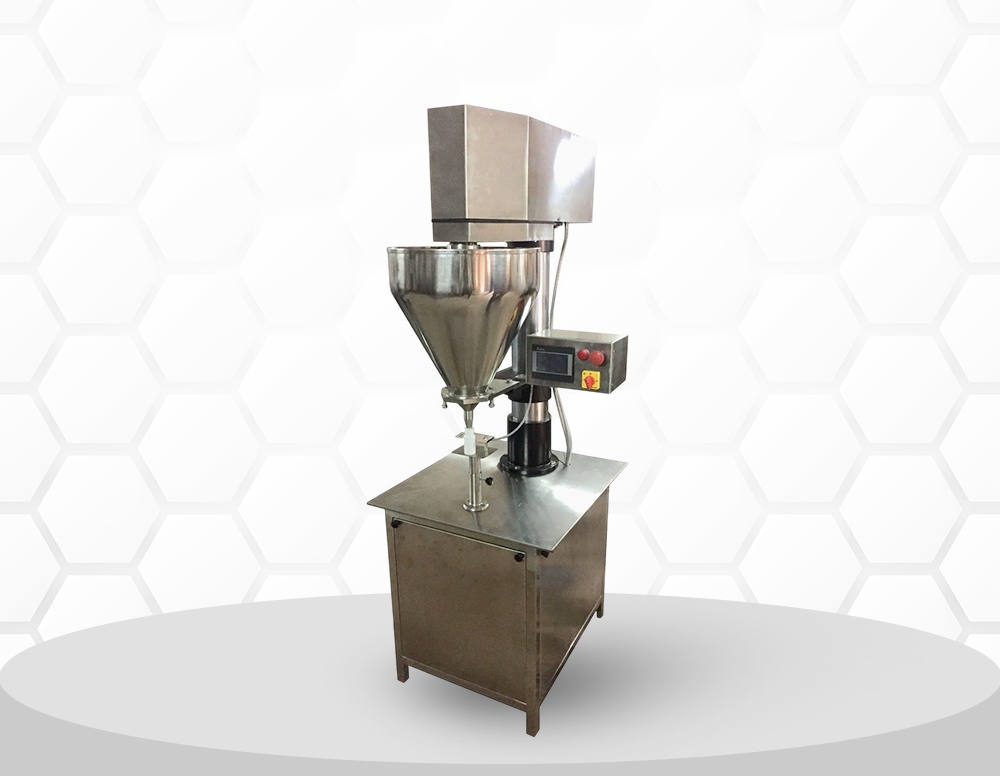

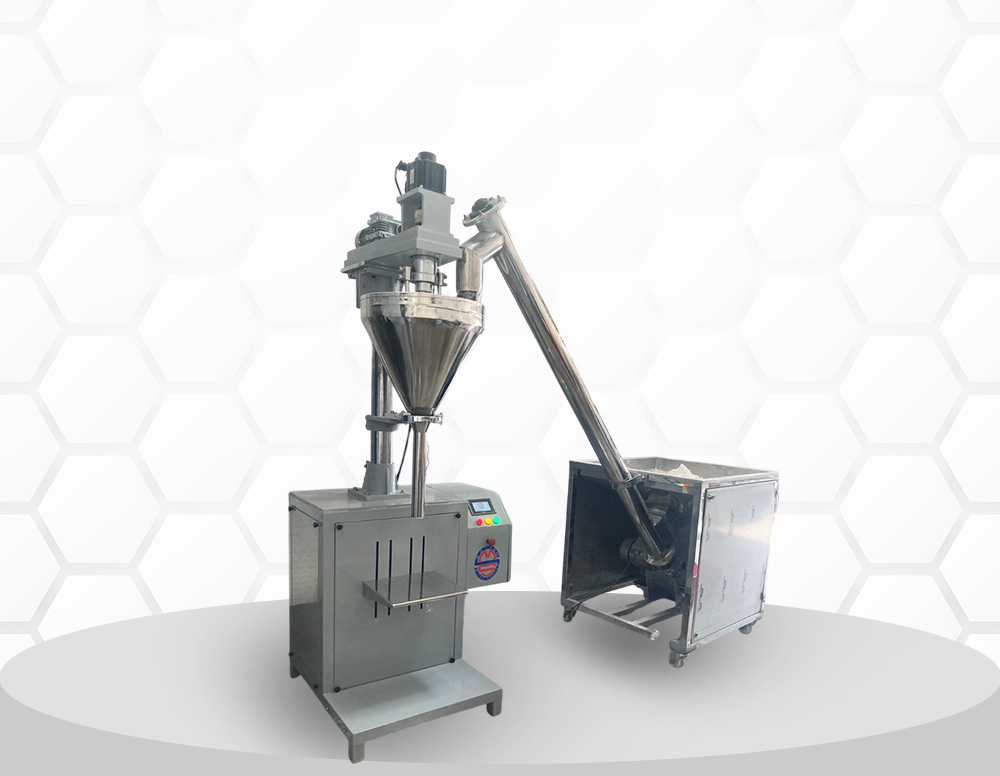

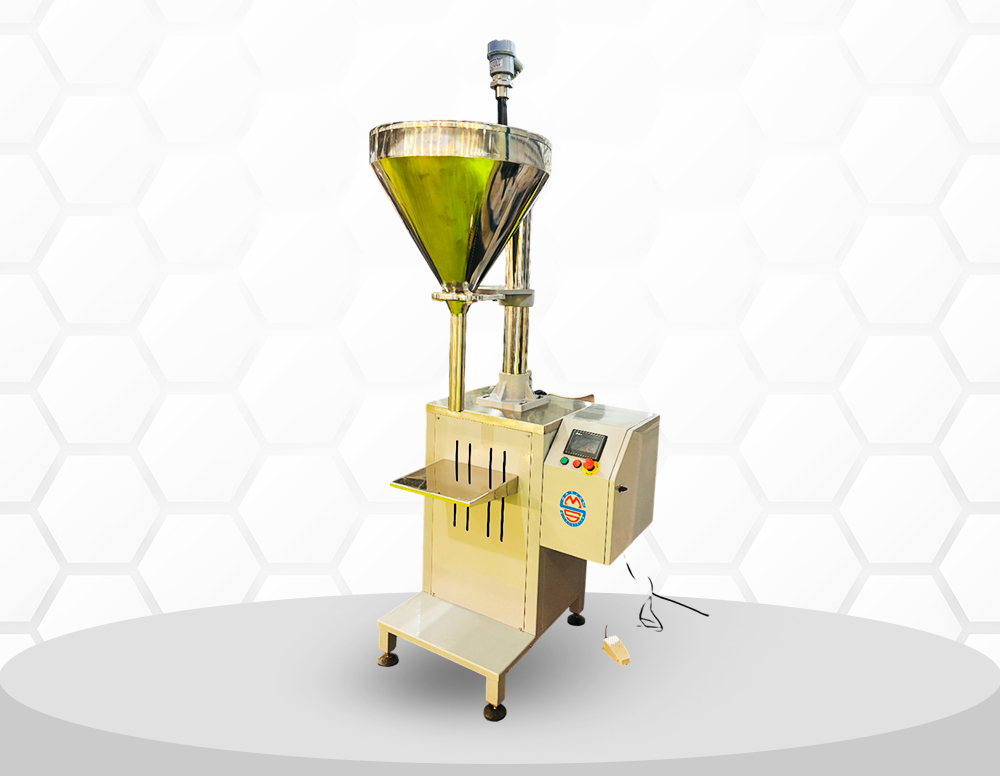

Semi Auto Auger Filler - Semi Automatic Powder Filling Machine

The Semi Auto Auger Filler is a precise and reliable filling machine specifically designed for fine and semi-fine powders. Using an auger screw mechanism, it ensures accurate dosing of products like flour, spices, talcum powder, protein powders, and pharmaceutical powders. This user-friendly machine is perfect for businesses needing consistent and clean fills without dust or spillage.

Specifications:

Parameter Details
Filling Range 10g - 10kg***
Accuracy ±1%
Filling Mechanism Servo-driven auger screw
Output Speed Up to 10-20 fills/min (product dependent)
Power Supply 230V, 50Hz, Single Phase
Power Consumption ~1.5 kW
Control System PLC with touchscreen HMI
Hopper Capacity 25-35 liters
Machine Material SS304 (contact parts)
Optional Features Dust extraction system, foot switch, stirrer
*** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection

Key Features:

  1. Auger screw-based filling for precise powder dosing
  2. Servo motor-driven auger for high accuracy
  3. Touchscreen HMI and PLC control system
  4. Easy-to-adjust fill volume and speed
  5. Suitable for a wide range of powder consistencies
  6. Dust-free filling with optional dust collection port
  7. Hopper with agitator for uniform flow
  8. Compact design for space-saving operations
  9. Quick changeover and easy cleaning

Applications / To Pack Products…

  1. Ideal For Filling Spices and Masala Powders
  2. Milk Powder and Protein Powder
  3. Coffee Powder and Premixes
  4. Baking Soda and Flour
  5. Chemical and Pharmaceutical Powders
  6. Talcum Powder and Cosmetic Powders
  7. Agrochemical Powders
  8. Detergent Powder
