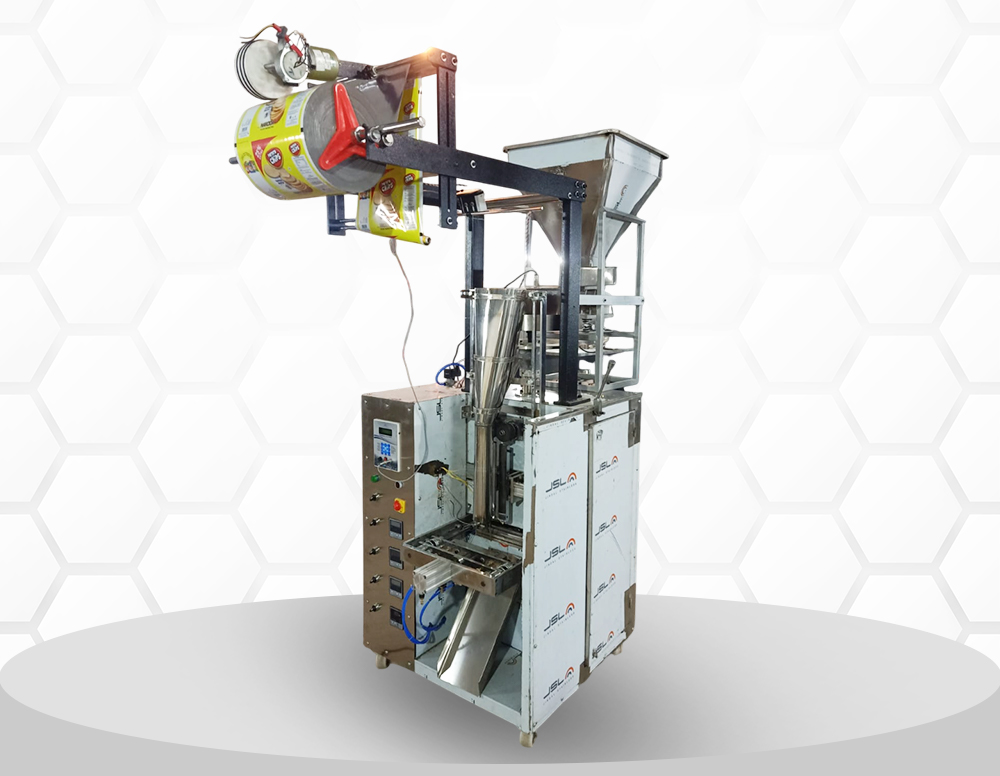

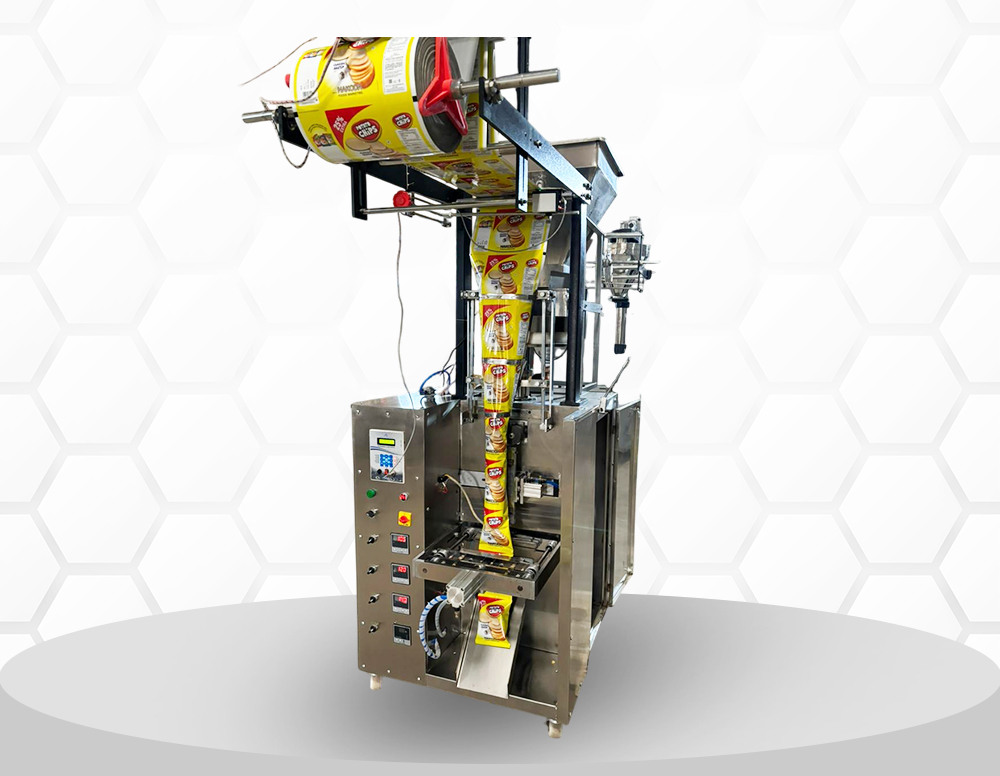

The Volumetric Cup Filler Sachet Packing Machine is designed for packaging free-flowing powders and granules with consistent volume accuracy. Ideal for products that don’t require precise weighing but demand speed and uniformity, this machine uses interchangeable volumetric cups to dispense exact quantities. Simple, reliable, and efficient—it’s perfect for packing items like spices, coffee, salt, sugar, detergent, and similar products into sachets or pouches.
| Parameters | Details | |
|---|---|---|
| Filling System | Volumetric adjustable cup filler | |
| Filling Range | 1 gms to 250g (customizable with cup sets)*** | |
| Packing Speed | Up to 40-50 packs per minute (depends on product and weight) | |
| Hopper Capacity | 50 LTR. (hopper extension optional) | |
| Speed | Up-to 10-15 Wpm (WPM = Weighing Per Minute)*** | |
| Accuracy | 1 - 2 gm. FS *** | |
| Power Supply | 230v A/C +/- 10% 50hz (Single Phase) | |
| Operating System | HMI (7.0 Inch Display In Color) | |
| Control System | MCU | |
| Machine Weight | 150 Kg. Approx. | |
| Machine Dimension | _____ x _____ x _____ [L x B x H] | |
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | ||
